/ EN

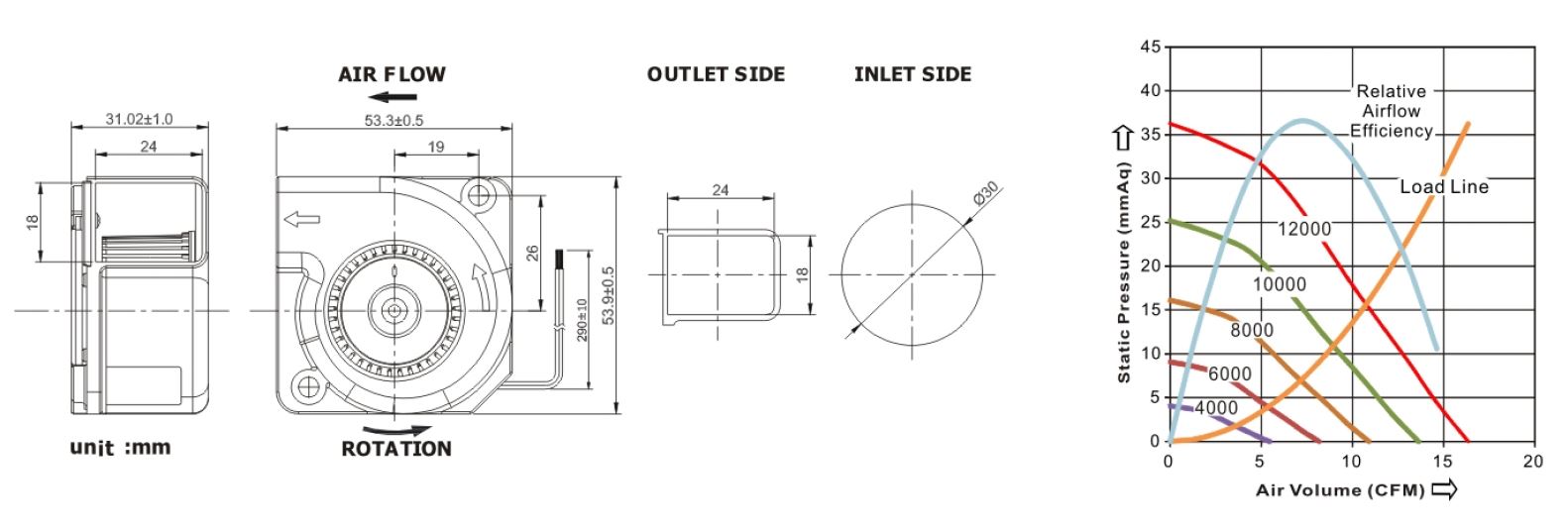

K series - 53x53x31 mm
(2.09x2.09x1.22in) - 37 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 50000hrs @ 10000RPM @ 30℃
Frame--------------- Aluminum
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 290±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ---------- IP51, IP54, IP56, IP67
