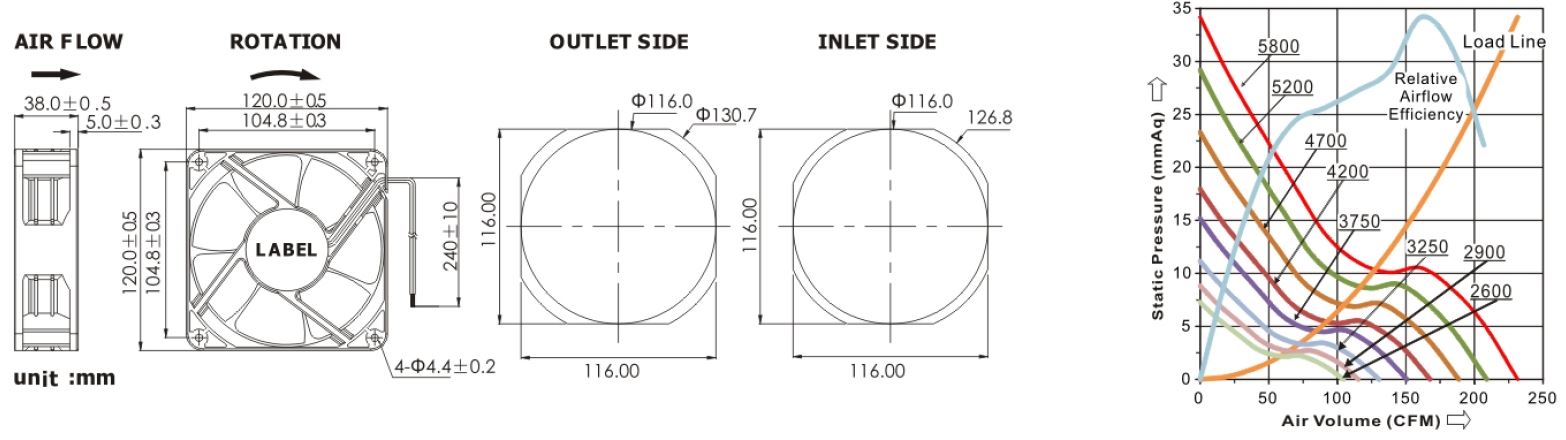

P/K series - 120x120x38mm
(4.72x4.72x1.50in) - 7 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 100000hrs @ 4200RPM @ 30℃
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 24, 240±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ---------- IP51, IP54, IP56, IP67
