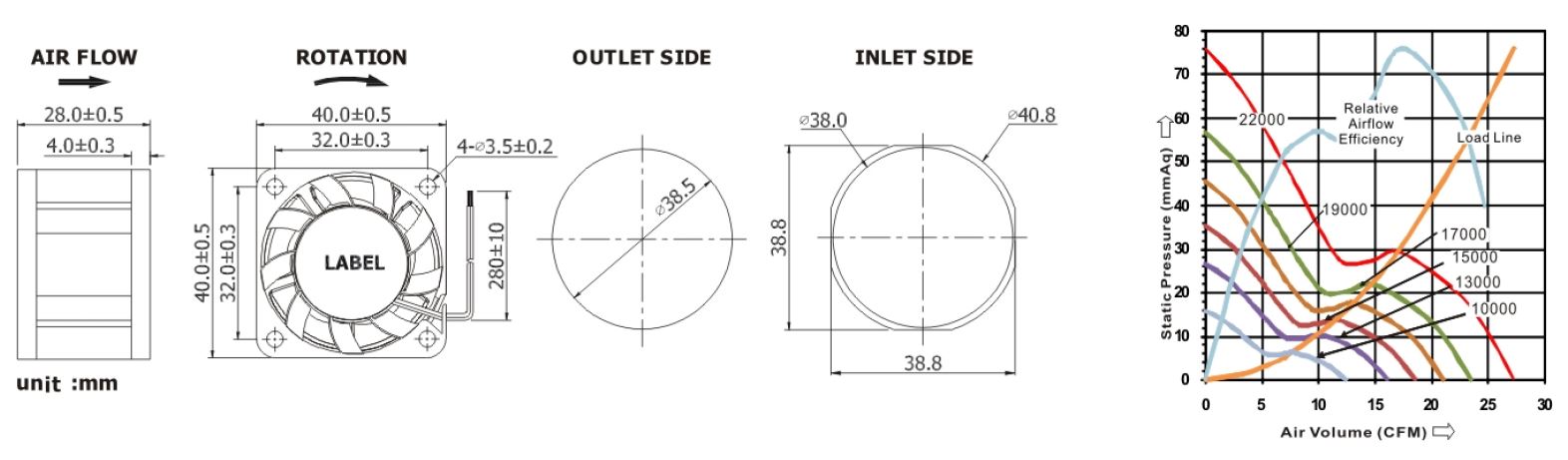

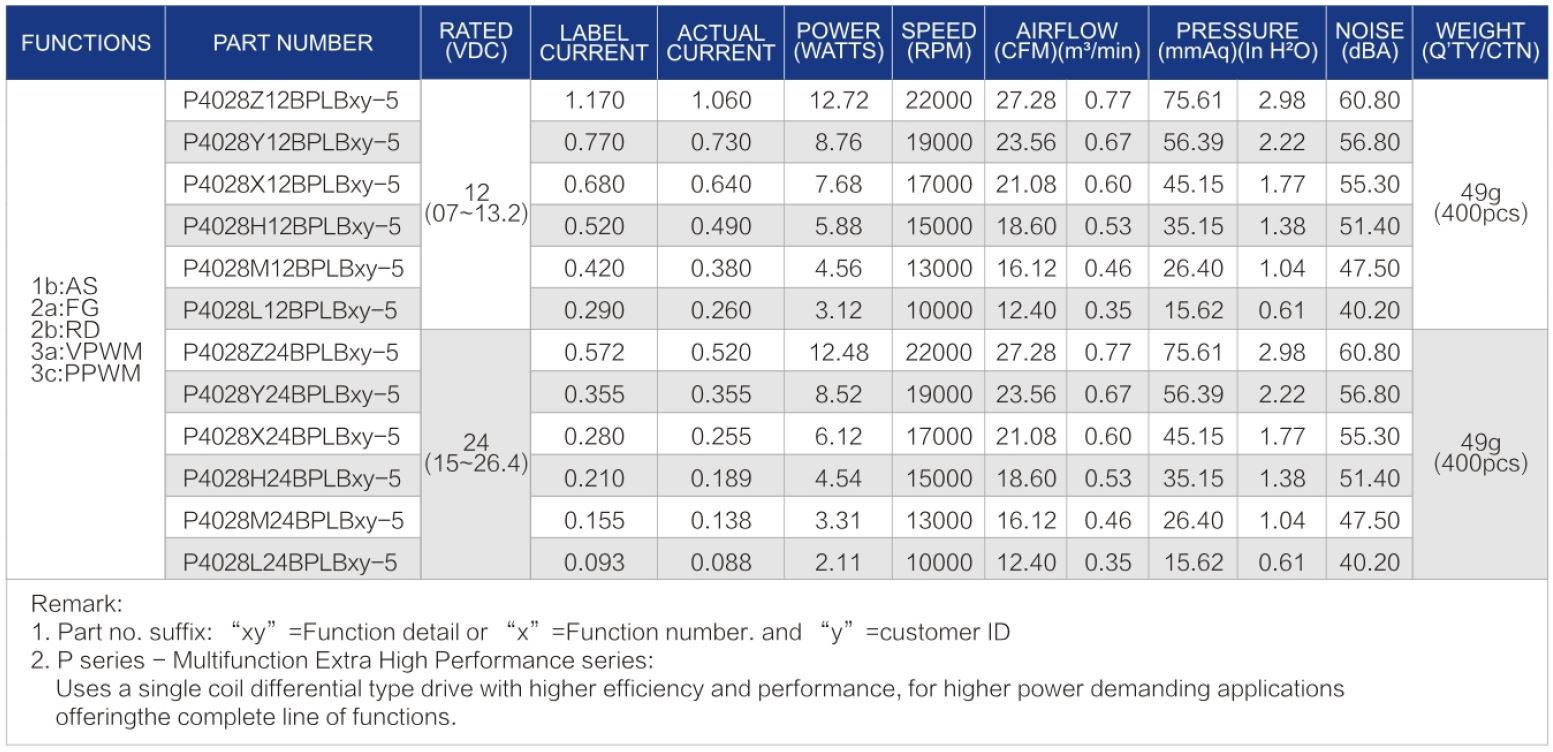

P series - 40x40x28mm
(1.57x1.57x0.79in) - 5 blade

Bearing System--- 2 Ball Bearing
Life Expectancy--- Ball 45000hrs @ 17000RPM @ 30°C
Frame--------------- Thermoplastic PBT+30% GF, UL94-V0
Impeller------------- Thermoplastic PBT+15% GF, UL94-V0
Lead Wire---------- UL 1007, AWG 26, 280±10mm, Red(+), Black(-)
Protection---------- Locked rotor protection
IP Grade  ----------  IP51, IP54, IP56, IP67
